History

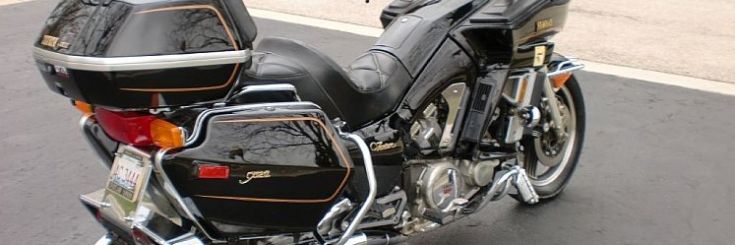

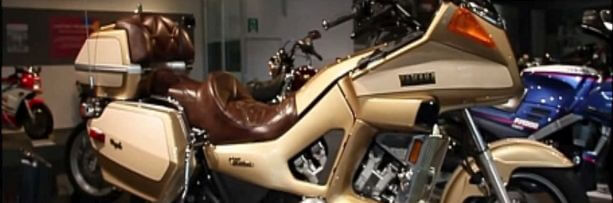

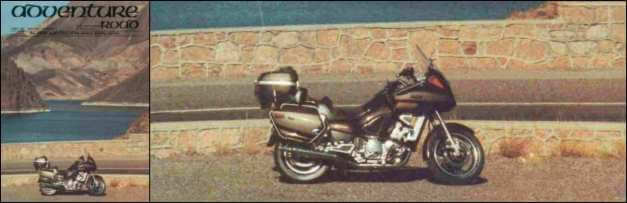

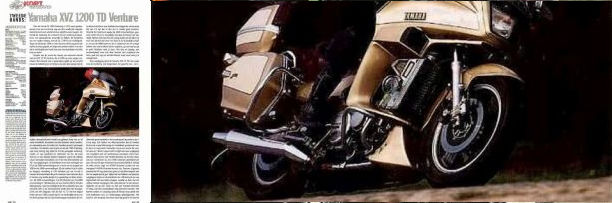

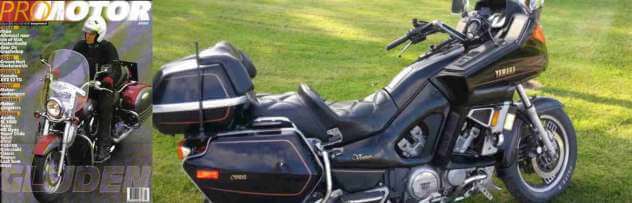

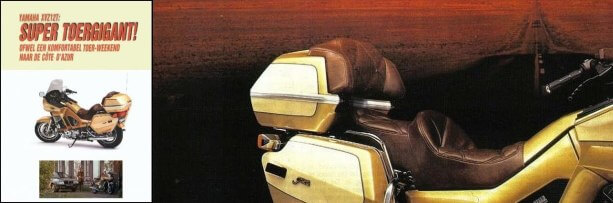

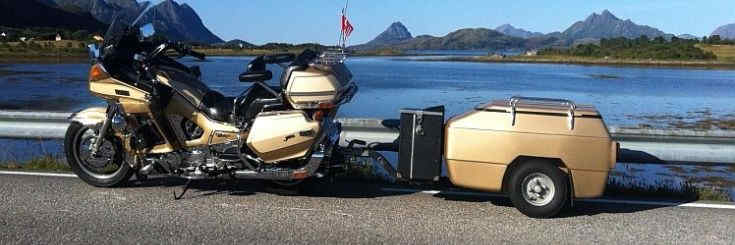

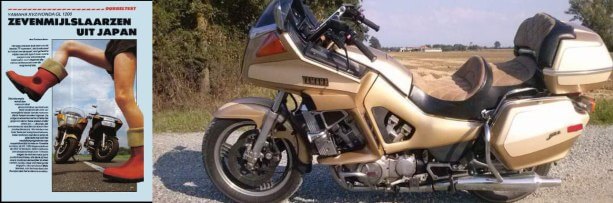

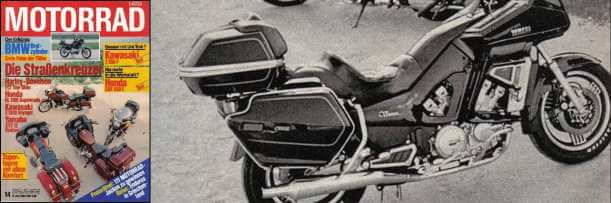

In 1983 a totally new luxury touring motorcycle from Yamaha appeared. The Venture. The 1198 cc measuring engine was made for touring, much torque at low rpm. Everything had to be bigger, more and more beautiful. Yamaha developed a totally new concept. Not an existing machine with more parts and full fairing, no, a totally new machine with all the luxury you only can imagine. The results are great, a quiet and comfortable machine. The steering is adjustable, the seat is designed for maximum comfort. A standard and a deluxe model was released. The deluxe version for the U.S. market and beyond (without 27mc), the standard version for outside the USA with only a cruise control as luxury. Yamaha has created a machine that could compete well with the Honda Goldwing. Venture riders have learned to respect the Venture and will not easily switch to another brand. According to most riders, the 1200 Venture has the best driving performance.

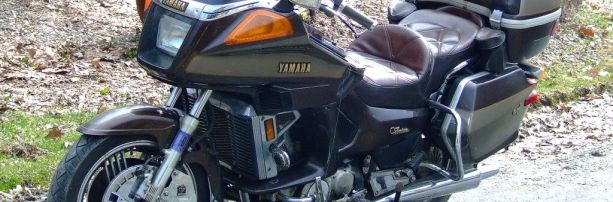

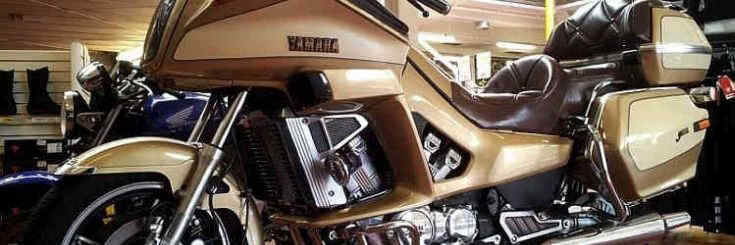

Specs

Make	Yamaha
Model	Venture (Royale) 1200
Type	XVZ 1200, T, TK, TDK

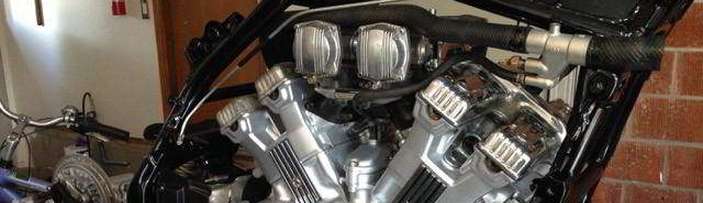

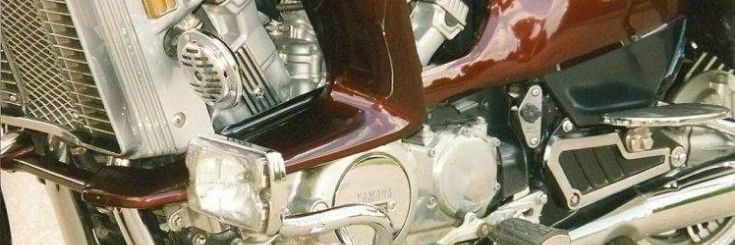

Engine	4cil, DOHC V-motor
Displacement	1198 CC
Bore/Stroke	79.0x66.0
Compression ratio	10.5:1
MaxPower	71.3kW at 7000rpm
Max Torque	107.9 Nm at 5000rpm
Lubrication	Wet sump
Carburation	Mikuni BDS35 x 4
Ignition	Transistor controlled
Starter	Eletric
Fuel capacity	20 L
Transmission	5 Gear
Final Transmission	Shaft drive
Oil capacity	4.7 L
Overall length	2370 mm
Overall with	920 mm
Overall height	1400 mm
Wheelbase	1610 mm
Groud clearance	145 mm
Seat height	785 mm
Dry weight	313 kg
Brakes front	Dual 287mm disks
Brake rear	Single 320mm Disk
Suspension front	Telescopic fork with air support
Suspension rear	Swingarm - Monocross with air support
Front tyre	120/90-18-65H
Rear tyre	140/90-16-71H (RF)
