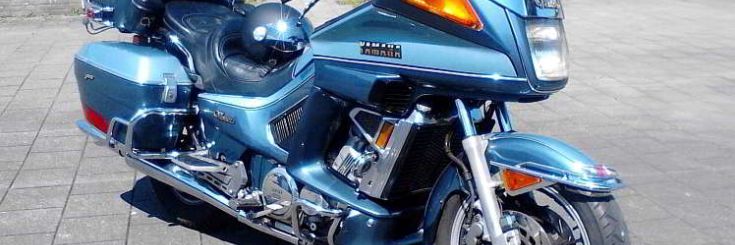

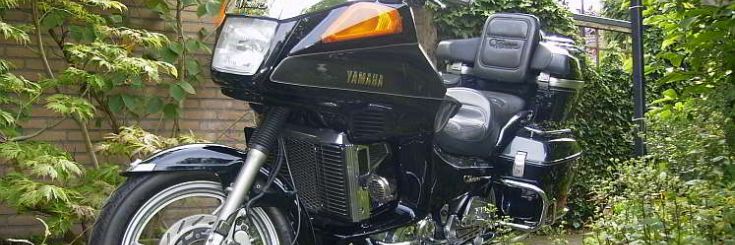

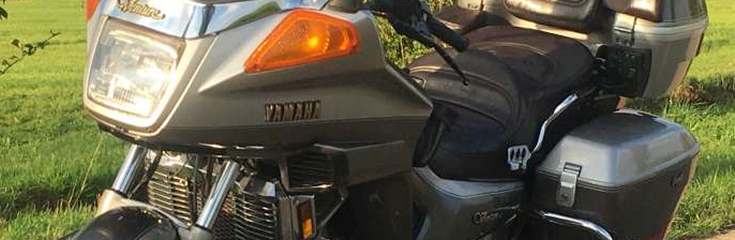

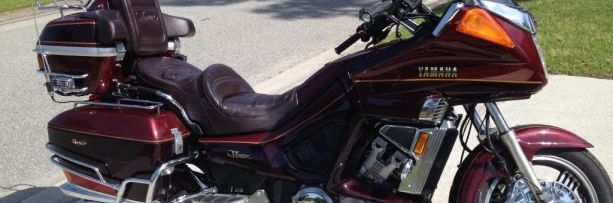

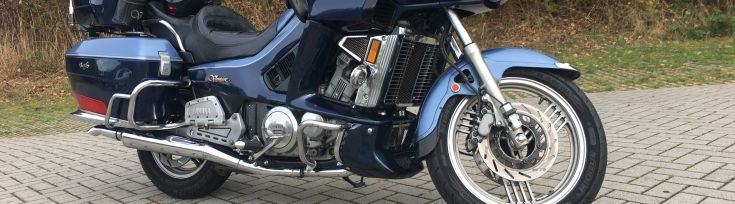

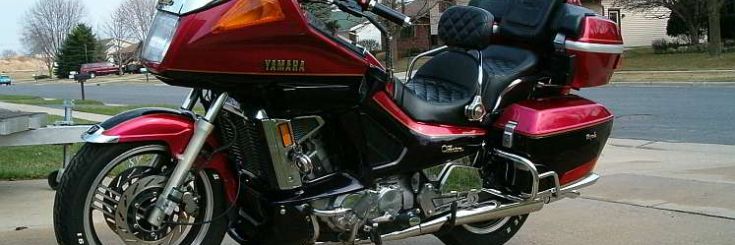

Yamaha Venture Royale 1300

Wiring Diagram

Simple Circuit

History

The 1200 model was very well received, but there were still some problems facing the Goldwing. In 1986 Yamaha made some changes. The engine size was increased to 1300 cc to generate more torque. The 1200 has more power than 1300. Luggage capacity increased by 50%, but the side cases could not be separated. 1300 was also equipped with an electronic anti-dive system on the fork. It only works when both brakes are in use. For passengers the comfort was an improvement, a larger trunk brought more back support. The weakness of the trunk is that the plastic breaks quickly. Despite all changes, improvements and increased traction, the 1300 did less than 16 kilometers per liter of petrol. Modifications to the bike from 1986 were minimized until the curtain fell for the 1300 in 1993.

Specs

Make	Yamaha
Model	Venture (Royale) 1300
Type	XVZ 1300, T, TDK, TD
Engine	4cil, DOHC V-motor
Displacement	1294 CC
Bore/Stroke	79.0x66.0
Compression ratio	10.5:1
MaxPower	63.6kW at 7000rpm
Max Torque	112.0 Nm at 5000rpm
Lubrication	Wet sump
Carburation	Mikuni BDS35 x 4
Ignition	Transistor controlled
Starter	Eletric
Fuel capacity	20 L
Transmission	5 Gear
Final Transmission	Shaft drive
Oil capacity	4.7 L
Overall length	2540 mm
Overall with	920 mm
Overall height	1520 mm
Wheelbase	1610 mm
Groud clearance	145 mm
Seat height	785 mm
Dry weight	355 kg
Brakes front	Dual 287mm disks
Brake rear	Single 320mm Disk
Suspension front	Telescopic fork with air support
Suspension rear	Swingarm - Monocross with air support
Front tyre	120/90-18-71H
Rear tyre	140/90-16-77H (RF)
